Hot Pipe Profile Hot Induction Pipe Bending Machine Automatic Bending

We supply high quality pipe bending machine, induction heating pipe bending machine for Malaysia market.
Mechanical Design:
Solidworks And FEA Software design .
Control System:
SIEMENS PLC HMI SCADA.
Hydraulic System:
Solidworks
Induction Heating System
IGBT or SCR.
7×24 Hours After Service

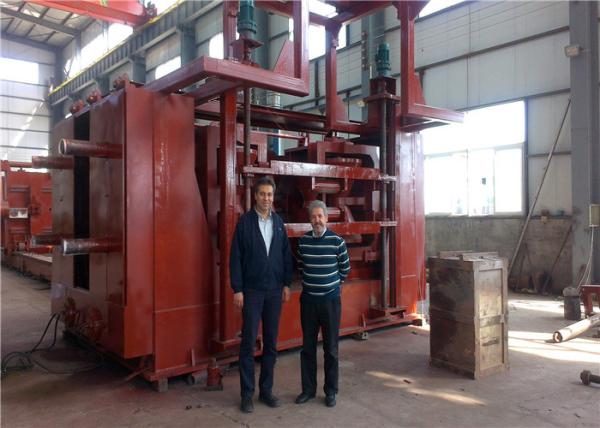

Machine composition of Hot Pipe Profile Hot Induction Pipe Bending Machine Automatic Bending

The Hot Pipe Profile Hot Induction Pipe Bending Machine Automatic Bending bending radius is generally 2.5D--6D. Any large radius can be bend according to customer needs. Also can produce steel pipes with multiple curvature radius.
The bending angle is generally 0-90° or 0-180°
Equipment structure,
Induction heating power supply part including induction heating power supply, cooling water circulation system, operation cabinet (touch screen, PLC control system).
Hydraulic system: oil tank, pump station, hydraulic cylinder, oil pipe.
Mechanical body: hydraulic cylinder support , push plate, Chassis, platform, transformer support, slide rail, rocker spindle, clamp, etc.

Hei Yan Group Covers the following R&D abilities :

1. PLC induction pipe bending machine,
2. Cold forming tee machine
3. Automatic Hot forming elbow machine
4. hydraulic pipe expanding machine
5. Bevel machine
6. Hydraulic press machine.
7. Cold elbow forming machine
8. Bandsaw machine
9. Medium Frequency power source
10. Shot Blast Machine
11. Pipe fittings dies&mandrels
12. Steel pipe fittings
