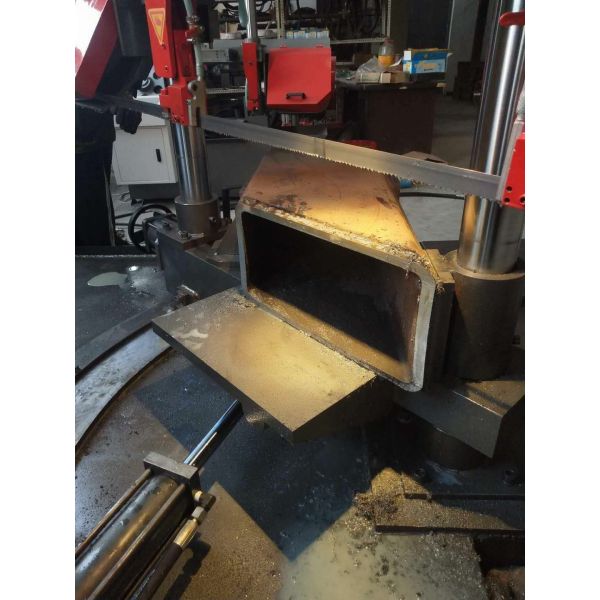

Multi-Angle Cutting Steel Cutting Horizontal Engine Band Saw Machine

Horizontal band sawing machine is mainly used for cutting alloy structural steel, medium carbon steel, low alloy steel, heat resistant touch steel SKT, high alloy steel, special alloy steel and stainless steel, bearing steel, acid-resistant steel, straightening steel and other metal materials.

According to the requirements of the cutting Angle into Angle sawing machine (can sawing Angle of 90 degrees 45 degrees) no Angle that is 90 degrees vertical cutting. 1. Adjustment of the cutting Angle: if you want to cut any Angle within a 45-degree Angle, first loosen the fixed handle, then push the saw bow clockwise and align it with the Angle scale you need on the Angle scale on the seat, then lock the fixed handle. 2. When you adjust the sawing Angle, the Angle of the vice shall be adjusted to loosen the vice fixing screw, and then push the vice into the vice to make the vice and the vice have the same Angle, and then lock the fixing screw.

Features:

• Sealed deceleration system, along with turbine structure to keep steady running of saw belt and extend saw belts life.
• Hydraulic rise down oil plus high strength balance spring and continuously variable speed adjustment can make machine reaches to perfect working stage ,makes the band saw belt teeth is not easy to broke.
• Special saw belt protection device can reduce saw belt broken.
• Band saw machine has adjustable guiding device to keep saw belt smoothly running to promote saw belt ‘s cut quality and using life.
• Many electric protection functions. The machine will start for work only when machine safety points are conformity with requirements.
• Can cut 0-60 degree.
• Controls by cutting stroke switch, can adjust cutting stroke according to work piece.

• After sales service:

  1.After the prepayment, the seller provide basic layout, equipment hydraulic principle diagram, electrical diagram, a set of instructions. For installation, the buyer is responsible for the cost of transport and living fees, and pay the technical personnel installing and training expense per people per day 100 USD.

  2.The whole equipment warranty 12 months. Hydraulic components and electrical components warranty 3 months. (for non-human factors)

Hei Yan Group Covers the following R&D abilities :

1. PLC induction pipe bending machine,
2. Cold forming tee machine
3. Automatic Hot forming elbow machine
4. hydraulic pipe expanding machine
5. Bevel machine
6. Hydraulic press machine.
7. Cold elbow forming machine
8. Bandsaw machine
9. Medium Frequency power source
10. Shot Blast Machine
11. Pipe fittings dies&mandrels
12. Steel pipe fittings
